DGD21814 Datasheet - Diodes

DGD21814 HIGH-SIDE AND LOW-SIDE GATE DRIVER

The DGD21814 is a high voltage / high speed gate driver capable of driving N-Channel MOSFETs and IGBTs in a half bridge configuration. High voltage processing techniques enable the DGD21814’s high-side to switch to 600V in a bootstrap operation. The DGD21814 logic inputs are compatible with standard.

DGD21814 Features

* Floating high-side driver in bootstrap operation to 600V

* Drives two N-Channel MOSFETs or IGBTs in a half bridge configuration

* 1.9A source / 2.3A sink output current capability

* Outputs tolerant to negative transients

* Wide low-side gate driver and logic supply: 10V to 20V

DGD21814-Diodes.pdf

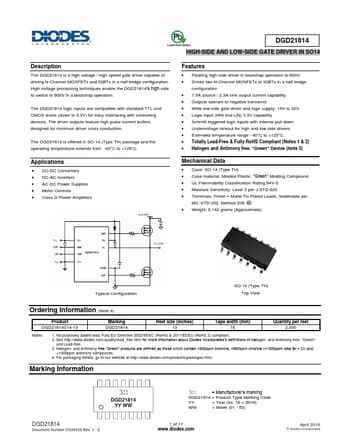

Preview of DGD21814 PDF
DGD21814 Datasheet Preview Page 2 DGD21814 Datasheet Preview Page 3

Datasheet Details

Part number:

DGD21814

Manufacturer:

DIODES ↗

File Size:

620.14 KB

Description:

High-side and low-side gate driver.
