DMN62D1SFB, 60V N-Channel MOSFET

DMN62D1SFB 60V N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary V(BR)DSS 60V RDS(on) Max 1.4 @ VGS= 10V 1.6 @ VGS= 4.5V ID Max @ TA = +25°C 0.41A .
This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high.

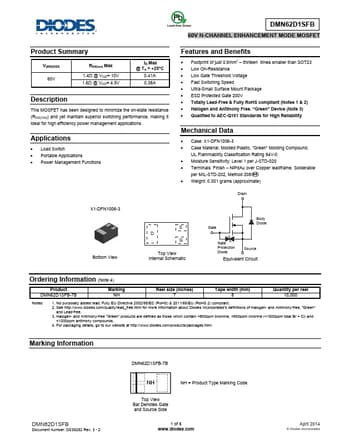

datasheet Preview Page 1 from Datasheet4u.com

DMN62D1SFB-Diodes.pdf

DMN62D1SFB Datasheet Preview — Preview of DMN62D1SFB PDF

Datasheet Details

Part number:

DMN62D1SFB

Manufacturer:

DIODES ↗

File Size:

248.94 KB

Description:

60V N-Channel MOSFET

Features

* Footprint of just 0.6mm
* thirteen times smaller than SOT23 Low On-Resistance Low Gate Threshold Voltage Fast Switching Speed Ultra-Small Surface Mount Package ESD Protected Gate 200V Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

Applications

* Mechanical Data Applications
* Load Switch Portable Applications Power Management Functions
* Case: X1-DFN1006-3 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-
