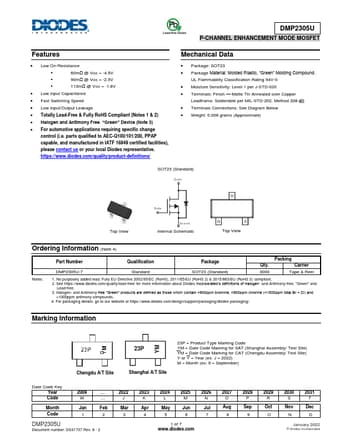

DMP2305U Datasheet, Mosfet, Diodes

DMP2305U Features

• Mosfet
• Low On-Resistance
• 60mΩ @ VGS = -4.5V
• 90mΩ @ VGS = -2.5V
• 113mΩ @ VGS = -1.8V
• Low Input Capacitance
• Fast Switching Spe

PDF File Details

Part number:

DMP2305U

Manufacturer:

DIODES ↗

File Size:

616.06kb

Download:

📄 Datasheet

Description:

P-channel mosfet.

DMP2305U Application

• Applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified f
