* Low Package Profile, 0.42mm Maximum Package Height
* 0.62mm x 0.62mm Package Footprint
* Low On-Resistance
* Very Low Gate Threshold Voltage, -1.0V Max
* ESD Protected Gate
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Dev

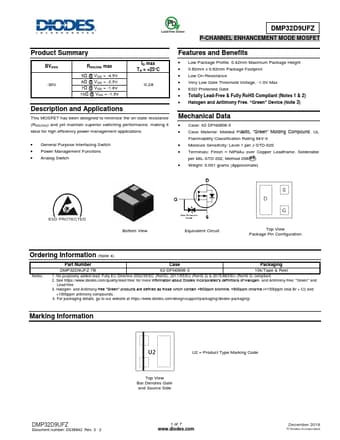

DMP32D9UFZ Datasheet (573.47 KB)
DMP32D9UFZ
573.47 KB
P-channel mosfet.
DMP32D9UFZ
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
BVDSS -30V
RDS(ON) max
5Ω @ VGS = -4.5V 6Ω @ VGS = -2.5V 7Ω @ VGS = -1.8V 10Ω @ VGS = .
