Part number:
DMTH3004LPSQ
Manufacturer:
File Size:
403.92 KB
Description:
N-channel mosfet.

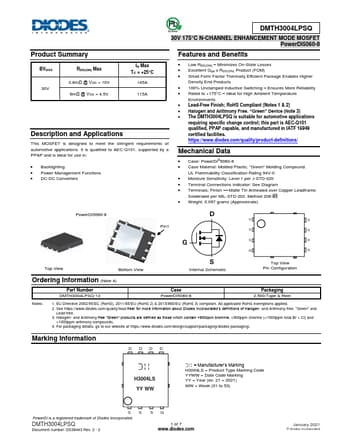

DMTH3004LPSQ Datasheet (403.92 KB)
* BVDSS 30V RDS(ON) Max 3.8mΩ @ VGS = 10V 6mΩ @ VGS = 4.5V ID Max TC = +25°C 145A 115A Description and Applications This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in:
* Backlighting
DMTH3004LPSQ Datasheet (403.92 KB)
DMTH3004LPSQ
403.92 KB
N-channel mosfet.
