DSS30101L - NPN SURFACE MOUNT TRANSISTOR

Datasheet Summary

Features

  • Ideal for Medium Power Amplification and Switching.
  • Ultra Low Collector-Emitter Saturation Voltage.
  • Lead, Halogen and Antimony Free, RoHS Compliant (Note 1).
  • “Green” Device (Note 2).
  • ESD rating: 400V-MM, 8KV-HBM Mechanical Data.
  • Case: SOT-23.
  • Case Material: Molded Plastic, "Green” Molding Compound. UL Flammability Classification Rating 94V-0.
  • Moisture Sensitivity: Level 1 per J-STD-020.
  • Terminals: Finish.

📥 Download Datasheet

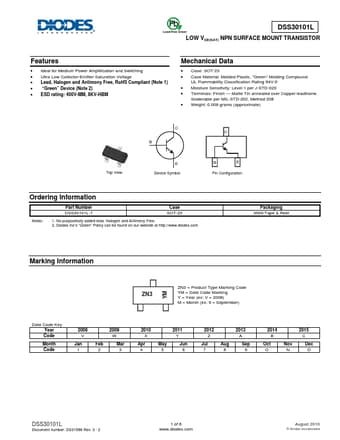

Datasheet preview – DSS30101L

Datasheet Details

Part number DSS30101L
Manufacturer DIODES
File Size 111.41 KB
Description NPN SURFACE MOUNT TRANSISTOR
Datasheet download datasheet DSS30101L Datasheet
Additional preview pages of the DSS30101L datasheet.

📁 Similar Datasheet

  • DSS306 - (DSS1/2/3) Dip Slide Switches (Fujisoku Corporation)
  • DSS30x - (DSS1/2/3) Dip Slide Switches (Fujisoku Corporation)
  • DSS310 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Formosa MS)
  • DSS310 - Surface Mount Schottky Barrier Rectifier (Tinysemi)
  • DSS310 - 3.0 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS (Slkor)
  • DSS312 - Surface Mount Schottky Barrier Rectifier (Tinysemi)
  • DSS315 - Surface Mount Schottky Barrier Rectifier (Tinysemi)
  • DSS32 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Formosa MS)
  • DSS32 - Surface Mount Schottky Barrier Rectifier (Tinysemi)
  • DSS32 - 3.0 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS (Slkor)
Other Datasheets by Diodes

Full PDF Text Transcription

Click to expand full text
ADVANCE INFORMATION YM DSS30101L LOW VCE(SAT) NPN SURFACE MOUNT TRANSISTOR Features • Ideal for Medium Power Amplification and Switching • Ultra Low Collector-Emitter Saturation Voltage • Lead, Halogen and Antimony Free, RoHS Compliant (Note 1) • “Green” Device (Note 2) • ESD rating: 400V-MM, 8KV-HBM Mechanical Data • Case: SOT-23 • Case Material: Molded Plastic, "Green” Molding Compound. UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020 • Terminals: Finish — Matte Tin annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 • Weight: 0.008 grams (approximate) Top View C B E Device Symbol C BE Pin Configuration Ordering Information Notes: Part Number DSS30101L-7 Case SOT-23 1. No purposefully added lead.
