DZ23C13, DZ23C2V7 300mW DUAL SURFACE MOUNT ZENER DIODE

Diodes

Description

DZ23C2V7 - DZ23C51 300mW DUAL SURFACE MOUNT ZENER DIODE .

📥 Download Datasheet

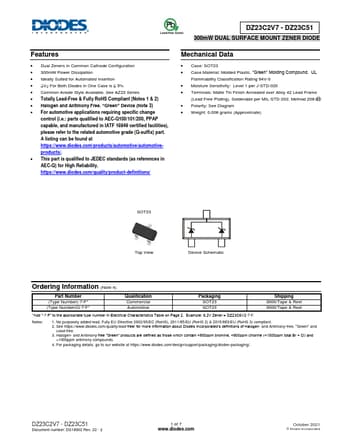

DZ23C13 Datasheet Preview — This datasheet PDF includes multiple part numbers: DZ23C13, DZ23C2V7. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: DZ23C13, DZ23C2V7
Manufacturer: DIODES ↗
File Size: 464.86 KB
Datasheet: DZ23C2V7-Diodes.pdf
Description: 300mW DUAL SURFACE MOUNT ZENER DIODE
Note: This datasheet PDF includes multiple part numbers: DZ23C13, DZ23C2V7.
Please refer to the document for exact specifications by model.

Features

* Dual Zeners in Common Cathode Configuration
* 300mW Power Dissipation
* Ideally Suited for Automated Insertion
* VZ For Both Diodes in One Case is  5%
* Common Anode Style Available, See AZ23 Series
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen an

Applications

* requiring specific change control (i. e. : parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please refer to the related automotive grade (Q-suffix) part. A listing can be found at https://www. diodes. com/products/automotive/automotiveproducts/.
