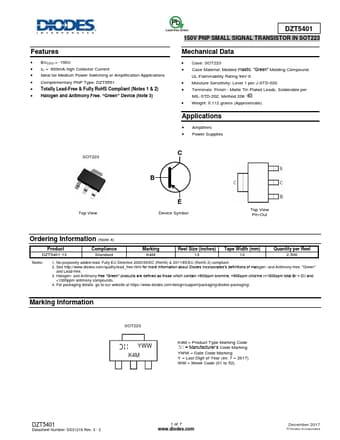

DZT5401 Datasheet, Transistor, Diodes

DZT5401 Features

• Transistor
• BVCEO > -150V
• IC = -600mA high Collector Current
• Ideal for Medium Power Switching or Amplification Applications
• Complementary PNP Type: DZT5551 <

PDF File Details

Part number:

DZT5401

Manufacturer:

DIODES ↗

File Size:

455.54kb

Download:

📄 Datasheet

Description:

Pnp surface mount transistor.

DZT5401 Application

• Applications
• Complementary PNP Type: DZT5551
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimo
