FZT688B 12V NPN MEDIUM POWER TRANSISTOR

FZT688B Description

FZT688B Green 12V NPN MEDIUM POWER HIGH GAIN TRANSISTOR IN SOT223 .

FZT688B Features

* BVCEO > 12V
* BVCBO > 12V
* IC = 4A High Continuous Current
* hFE > 400 @ 3A and Low Saturation Voltage
* Extremely Low Equivalent On-Resistance; RCE(SAT) 83mΩ at 3A
* Complementary PNP Type: FZT788B
* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
* Halogen and Ant

FZT688B Applications

* Flash Gun Convertors
* Battery Powered Circuits SOT223 Top View C B E Device Symbol E CC Top View Pin-Out B Ordering Information (Note 4) Product FZT688BTA Compliance AEC-Q101 Marking FZT688B Reel size (inches) 7 Tape width (mm) 12 Quantity per reel 1,000 Notes: 1. EU Direct

📥 Download Datasheet

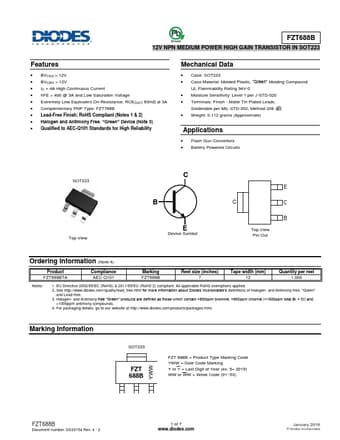

Preview of FZT688B PDF
