GBPC2510W, GBPC25005 25A GLASS PASSIVATED BRIDGE RECTIFIER

GBPC2510W Description

OBSOLETE PLEASE USE GBJ25005 * GBJ2510 (DS21221) GBPC25005/W - GBPC2510/W 25A GLASS PASSIVATED BRIDGE RECTIFIER .

GBPC2510W Features

* Glass Passivated Die Construction
* Low Reverse Leakage Current
* Low Power Loss, High Efficiency
* Surge Overload Rating to 300A Peak
* Metal Base for Maximum Heat Dissipation
* Case to Terminal Isolation Voltage 1500V
* UL Listed Under Recognized Component Index, File

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GBPC2510W, GBPC25005. Please refer to the document for exact specifications by model.

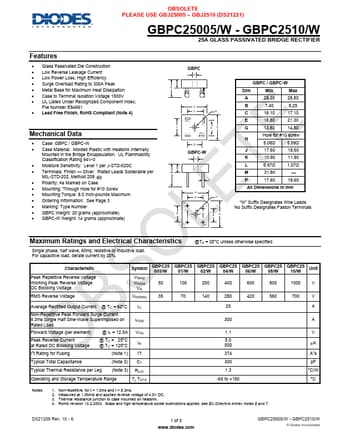

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GBPC2510W, GBPC25005
Manufacturer
DIODES ↗
File Size
146.68 KB
Datasheet
GBPC25005-Diodes.pdf
Description
25A GLASS PASSIVATED BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: GBPC2510W, GBPC25005.
Please refer to the document for exact specifications by model.
