GBPC3506W, GBPC35005 35A GLASS PASSIVATED BRIDGE RECTIFIER

GBPC3506W Description

GBPC35005/W - GBPC3510/W 35A GLASS PASSIVATED BRIDGE RECTIFIER .

GBPC3506W Features

* Glass Passivated Die Construction
* Diffused Junction
* Low Reverse Leakage Current
* Low Power Loss, High Efficiency
* Surge Overload Rating to 400A Peak
* Electrically Isolated Metal Base for Maximum Heat Dissipation
* Case to Terminal Isolation Voltage 1500V
* UL

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GBPC3506W, GBPC35005. Please refer to the document for exact specifications by model.

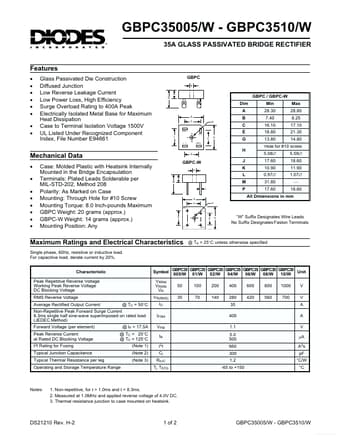

datasheet Preview Page 2

Datasheet Details

Part number
GBPC3506W, GBPC35005
Manufacturer
DIODES ↗
File Size
85.51 KB
Datasheet
GBPC35005-Diodes.pdf
Description
35A GLASS PASSIVATED BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: GBPC3506W, GBPC35005.
Please refer to the document for exact specifications by model.
