GBPC3508, GBPC35005 - 35A GLASS PASSIVATED BRIDGE RECTIFIER

Name: GBPC3508
SKU: GBPC3508-1262373

Diodes

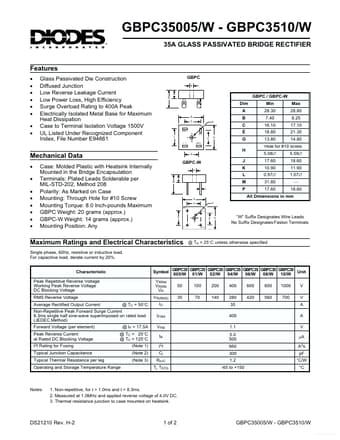

The GBPC3508 by Diodes is a 35A GLASS PASSIVATED BRIDGE RECTIFIER. Below is the official datasheet preview.

Datasheet Details

Part number	GBPC3508, GBPC35005
Manufacturer	DIODES
File Size	85.51 KB
Description	35A GLASS PASSIVATED BRIDGE RECTIFIER
Datasheet	GBPC35005-Diodes.pdf
Note	This datasheet PDF includes multiple part numbers: GBPC3508, GBPC35005. Please refer to the document for exact specifications by model.
Additional preview pages of the GBPC3508 datasheet.

Glass Passivated Die Construction.
Diffused Junction.
Low Reverse Leakage Current.
Low Power Loss, High Efficiency.
Surge Overload Rating to 400A Peak.
Electrically Isolated Metal Base for Maximum Heat Dissipation.
Case to Terminal Isolation Voltage 1500V.
UL Listed Under Recognized Component Index, File Number E94661 Mechanical Data.
Case: Molded Plastic with Heatsink Internally Mounted in the Bridge Encapsulation.
Terminals: Plated Leads Solde.
