MBR2060CTP - 20A SCHOTTKY BARRIER RECTIFIER

Key Features

  • Low Forward Voltage Drop.
  • Soft, Fast Switching Capability.
  • Schottky Barrier Chip.
  • ITO-220S Heat Sink Tab Electrically Isolated from Cathode.
  • UL Approval in Accordance with UL 1557, Reference No. E94661 MBR2060CTP 20A.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MBR2060CT Schottky Barrier Rectifiers MOSPEC
MBR2060CT Schottky Barrier Rectifier Littelfuse
MBR2060CT SCHOTTKY BARRIER RECTIFIER KD
MBR2060CT 20 AMPERES SCHOTTKY BARRIER RECTIFIERS Pan Jit International
MBR2060CT 20A SCHOTTKY BARRIER RECTIFIERS Frontier Electronics

Other Datasheets by Diodes Incorporated

Part Number Description
MBR2060CT 20A SCHOTTKY BARRIER RECTIFIER
MBR20100C HIGH VOLTAGE POWER SCHOTTKY RECTIFIER
MBR20100CT 20A SCHOTTKY BARRIER RECTIFIER
MBR20150C HIGH VOLTAGE POWER SCHOTTKY RECTIFIER
MBR20150CT 20A SCHOTTKY BARRIER RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

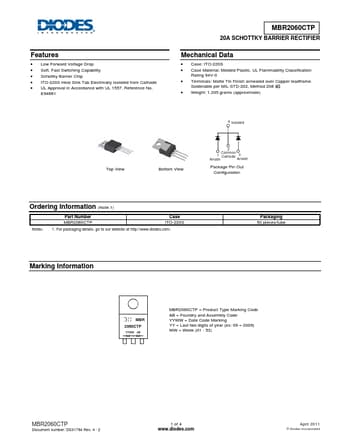

NEW PRODUCT Features • Low Forward Voltage Drop • Soft, Fast Switching Capability • Schottky Barrier Chip • ITO-220S Heat Sink Tab Electrically Isolated from Cathode • UL Approval in Accordance with UL 1557, Reference No. E94661 MBR2060CTP 20A SCHOTTKY BARRIER RECTIFIER Mechanical Data • Case: ITO-220S • Case Material: Molded Plastic, UL Flammability Classification Rating 94V-0 • Terminals: Matte Tin Finish annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 • Weight: 1.335 grams (approximate) Top View Bottom View 4 Isolated 2 1 Anode Common Cathode 3 Anode Package Pin Out Configuration Ordering Information (Note 1) Notes: Part Number MBR2060CTP Case ITO-220S 1. For packaging details, go to our website at http://www.diodes.com.
