MBR20H100C

HIGH VOLTAGE POWER SCHOTTKY RECTIFIER

MBR20H100C Features

* Low Forward Voltage: 0.77V @ +25oC

* High Surge Current Capacity

* +175C Operating Junction Temperature

* 20A Total (10A Each Diode Leg)

* Guard-Ring for Stress Protection

* Pb-free Package

* TO-220-3 (2) and TO-220F-3 (Option 1)

* Lead-Free Finish; RoHS Compliant

MBR20H100C General Description

High voltage dual Schottky rectifier suited for switch mode power supplies and other power converters. This device is intended for use in medium voltage operation, and particularly, in high frequency circuits where low switching losses and low noise are required. MBR20H100C is available in TO-220F-.

MBR20H100C Datasheet (493.31 KB)

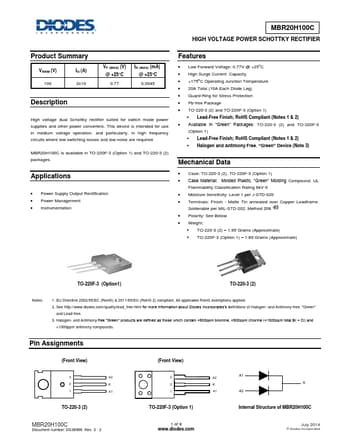

Preview of MBR20H100C PDF

Datasheet Details

Part number:

MBR20H100C

Manufacturer:

DIODES ↗

File Size:

493.31 KB

Description:

High voltage power schottky rectifier.
MBR20H100C HIGH VOLTAGE POWER SCHOTTKY RECTIFIER Product Summary VRRM (V) 100 IO (A) 2x10 VF (MAX) (V) @ +25°C 0.77 IR (MAX) (mA) @ +25°C 0.0045 .
