MBRF20150CT, MBR20150CT 20A SCHOTTKY BARRIER RECTIFIER

MBRF20150CT Description

MBR20150CT / MBRF20150CT Green 20A SCHOTTKY BARRIER RECTIFIER Product Summary MBR20150CT / MBRF20150CT (Per Leg) VRRM (V) IO (A) VF (MAX) (V) @ +.
and Applications This Schottky Barrier Rectifier has been designed to meet the general requirements of commercial applications.

MBRF20150CT Features

* Guard Ring Die Construction for Transient Protection
* High Surge Current Capability
* Low Forward Voltage Drop
* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
* Qualified to AEC-Q101 Standards for High Reliability Desc

MBRF20150CT Applications

* This Schottky Barrier Rectifier has been designed to meet the general requirements of commercial applications. It is ideally suited for use as:
* Polarity Protection Diode
* Re-Circulating Diode
* Switching Diode Mechanical Data
* Case: TO-220AB, ITO-220AB
* Case Material: Molde

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBRF20150CT, MBR20150CT. Please refer to the document for exact specifications by model.

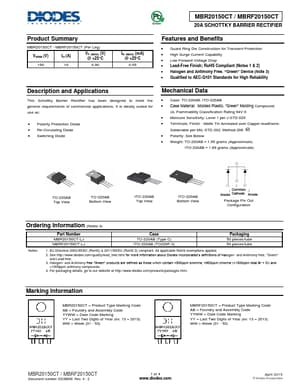

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBRF20150CT, MBR20150CT
Manufacturer
DIODES ↗
File Size
440.38 KB
Datasheet
MBR20150CT-Diodes.pdf
Description
20A SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: MBRF20150CT, MBR20150CT.
Please refer to the document for exact specifications by model.
