MMBD3004BRM - HIGH VOLTAGE SURFACE MOUNT SWITCHING DIODE ARRAY

MMBD3004BRM Description

NOT RECOMMENDED FOR NEW DESIGN CONTACT US MMBD3004BRM HIGH VOLTAGE SURFACE MOUNT SWITCHING DIODE ARRAY .

MMBD3004BRM Features

* Two Series Diode Circuits Connect to Form Full Wave Bridge
* Fast Switching Speed
* High Conductance
* High Reverse Breakdown Voltage Rating
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. "Green" Device (Note 3) Mechanical Data

📥 Download Datasheet

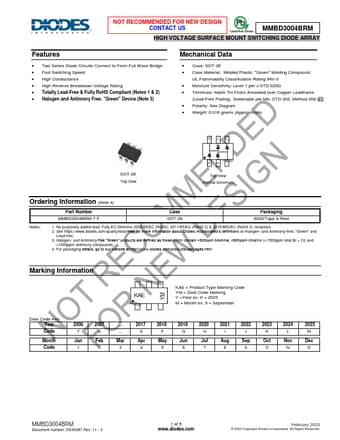

Preview of MMBD3004BRM PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MMBD3004BRM
Manufacturer
DIODES ↗
File Size
446.93 KB
Datasheet
MMBD3004BRM-Diodes.pdf
Description
HIGH VOLTAGE SURFACE MOUNT SWITCHING DIODE ARRAY
