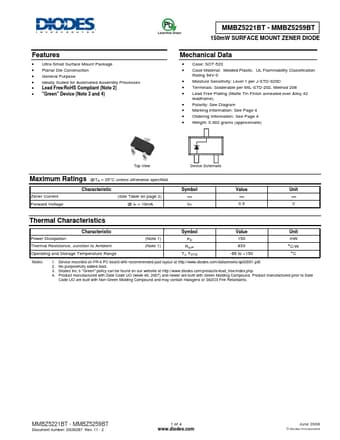

MMBZ5248BT
Features
- Ultra-Small Surface Mount Package
- Planar Die Construction
- General Purpose
- Ideally Suited for Automated Assembly Processes
- Lead Free/Ro HS pliant (Note 2)
- "Green" Device (Note 3 and 4)
MMBZ5221BT
- MMBZ5259BT
150m W SURFACE MOUNT ZENER DIODE
Mechanical Data
- Case: SOT-523
- Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
- Moisture Sensitivity: Level 1 per J-STD-020D
- Terminals: Solderable per MIL-STD-202, Method 208
- Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe).
- Polarity: See Diagram
- Marking Information: See Page 4
- Ordering Information: See Page 4
- Weight: 0.002 grams (approximate)
Top View
Maximum Ratings @TA = 25°C unless otherwise specified
Zener Current Forward Voltage
Characteristic
(See Table on page 2) @ IF = 10m A
Device Schematic
Symbol ⎯ VF
Value ⎯ 0.9
Unit ⎯ V
Thermal Characteristics
Characteristic Power Dissipation Thermal Resistance, Junction...
