PAM8620 - 15W STEREO CLASS-D AUDIO POWER AMPLIFIER

Description

The PAM8620 is a 15W (per channel) stereo Class-D audio amplifier which offers low THD+N (0.2%), low EMI and good PSRRd thus highquality sound reproduction.

The PAM8620 runs off of an 8V to 26V supply at much higher efficiency than competitors’ Ics.

Features

  • 15Wx2 Into a 8Ω Speaker.
  • Low Noise: -90dB.
  • Over 90% Efficiency.
  • Shutdown/ Mute Function.
  • Over Current ,OVP,UVLO,Thermal and Short-Circuit Protection.
  • Low THD+N.
  • Power Limit with Non-Clip.
  • Low Quiescent Current.
  • Pop Noise Suppression.
  • Small Package Outlines: QFN5x5-32L.
  • Pb-Free Package (RoHS Compliant).

📥 Download Datasheet

📁 Similar Datasheet

  • PAM8603M - 3W Filterless Stereo Class-D Audio Amplifier (Power Analog Micoelectronics)
  • PAM8606 - 6W Stereo Class-D Audio Power Amplifier (Power Analog Micoelectronics)
  • PAM8610 - 10W Stereo Class-D Audio Power Amplifier (Power Analog Micoelectronics)
  • PAM8002 - 3W Filterless Mono Class D Audio Power Amplifier (Power Analog Microelectronics)
  • PAM8006 - 10W Stereo Class-D Audio Power Amplifier (Power Analog Microelectronics)
  • PAM8101 - (PAM8101 / PAM8201) Tiny 1.2 Watt Class-D Audio Amplifiers (PAM)
  • PAM8201 - (PAM8101 / PAM8201) Tiny 1.2 Watt Class-D Audio Amplifiers (PAM)
  • PAM8202 - Tiny Package 2 Watt Class-D Stereo Audio Amplifier (PAM)
  • PAM8301 - Filterless Class-D Mono Audio Amplifier (ChipSourceTek)
  • PAM8301 - Filterless Class-D Mono Audio Amplifier (Power Analog Micoelectronics)
Other Datasheets by Diodes
  • PAM8603A - ANTI-SATURATION FILTERLESS 3W CLASS-D STEREO AMPLIFIER
  • PAM8603M - 3W FILTERLESS STEREO CLASS-D AUDIO AMPLIFIER
  • PAM8610 - 10W STEREO CLASS-D AUDIO POWER AMPLIFIER
  • PAM8615 - 16W/ 32W STEREO CLASS-D AUDIO POWER AMPLIFIER
  • PAM8001 - ANTI-SATURATION FILTERLESS 2W CLASS-D STEREO AMPLIFIER
  • PAM8003 - FILTERLESS 2.5W CLASS-D STEREO AUDIO AMPLIFIER
  • PAM8004 - FILTERLESS 3W CLASS-D STEREO AUDIO AMPLIFIER
  • PAM8006 - 10W STEREO CLASS-D AUDIO POWER AMPLIFIER

Full PDF Text Transcription

Click to expand full text

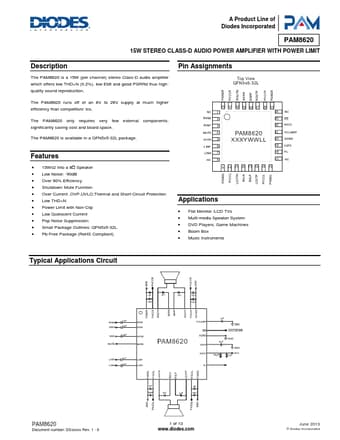

A Product Line of Diodes Incorporated PAM8620 15W STEREO CLASS-D AUDIO POWER AMPLIFIER WITH POWER LIMIT Description The PAM8620 is a 15W (per channel) stereo Class-D audio amplifier which offers low THD+N (0.2%), low EMI and good PSRRd thus highquality sound reproduction. The PAM8620 runs off of an 8V to 26V supply at much higher efficiency than competitors’ Ics. The PAM8620 only requires very few external components, significantly saving cost and board space. The PAM8620 is available in a QFN5x5-32L package.
