PI3CH800 - 8-Bit Bus Switch

Product Overview

📥 Download Datasheet

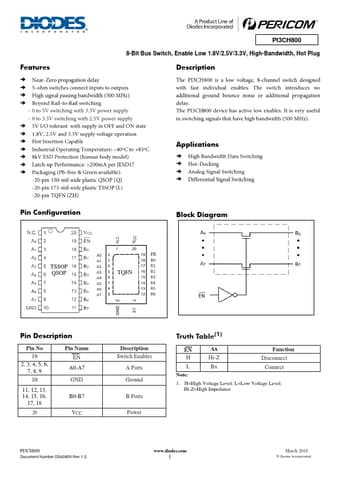

Datasheet preview – PI3CH800

Datasheet Details

Part number PI3CH800
Manufacturer DIODES
File Size 893.06 KB
Description 8-Bit Bus Switch
Datasheet download datasheet PI3CH800 Datasheet
Additional preview pages of the PI3CH800 datasheet.

Product details

Description

Applications     Block Diagram TSSOP QSOP TQFN Pin Description Pin No 19 2, 3, 4, 5, 6, 7, 8, 9 10 11, 12, 13, 14, 15, 16, 17, 18 20 Pin Name 1111111 EN A0-A7 GND B0-B7 VCC Description Switch Enables A Ports Ground B Ports Power Truth Table(1) EN Ax Function H Hi-Z Disconnect L Bx Note: Connect 1. H=High Voltage Level; L=Low Voltage Level; Hi-Z=High Impedance PI3CH800 Document Number DS40809 Rev 1-2 www.diodes.com 1 March 2018 © Diodes Incorporated PI3CH800 Maximum Rat

Features
