QSOP-20 PACKAGE

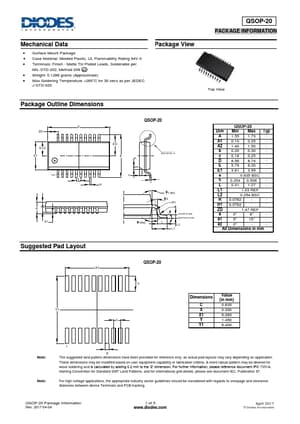

2 Mechanical Data Surface Mount Package Case Material: Molded Plastic, UL Flammability Rating 94V-0 Terminals: Finish - Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208 e3 Weight: 0.1286 grams (Approximate) Max Soldering Temperature +260°C for 30 secs as per JEDEC J-STD-020 Package View Package Outline Dimensions QSOP-20 PACKAGE INFORMATION Top View D ZD E1/2 E1 QSOP-20 E/2 E h SEE DETAIL 'A' PIN 1 A A2 A1 e b h c 1(4x) 1 (4x) 2 R1 R .
