RS1JDFQ - 1.0A SURFACE MOUNT FAST RECOVERY RECTIFIER

Product Overview

Diodes

Datasheet Details

Part number	RS1JDFQ
Manufacturer	DIODES
File Size	435.66 KB
Description	1.0A SURFACE MOUNT FAST RECOVERY RECTIFIER
Datasheet	RS1JDFQ Datasheet

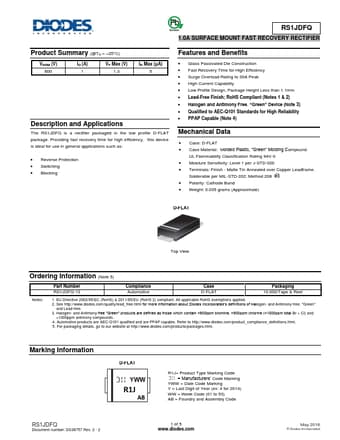

Additional preview pages of the RS1JDFQ datasheet.

Product details

Description

and Applications The RS1JDFQ is a rectifier packaged in the low profile D-FLAT package.Providing fast recovery time for high efficiency, this device is ideal for use in general applications such as: Reverse Protection Switching Blocking

Features

Glass Passivated Die Construction.
Fast Recovery Time for High Efficiency.
Surge Overload Rating to 30A Peak.
High Current Capability.
Low Profile Design, Package Height Less than 1.1mm.
Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
PPAP Capable (Note 4) Mechanical Data.
Case: D-FLAT.
Case Material: Molded Plastic, “Green” Molding Com.
