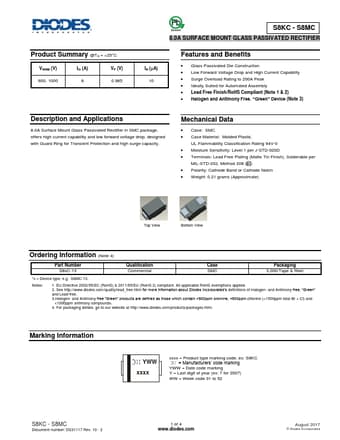

S8MC
Features
- -
- -
- - Glass Passivated Die Construction Low Forward Voltage Drop and High Current Capability Surge Overload Rating to 200A Peak Ideally Suited for Automated Assembly Lead Free Finish/Ro HS pliant (Note 1) Green Molding pound (No Halogen and Antimony) (Note 2)
Mechanical Data
- -
- -
- -
- - Case: SMC Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020D Terminals: Lead Free Plating (Matte Tin Finish). Solderable per MIL-STD-202, Method 208 Polarity: Cathode Band or Cathode Notch Marking Information: See Page 2 Ordering Information: See Page 2 Weight: 0.21 grams (approximate)
Top View
Bottom View
Maximum Ratings
@TA = 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load. For capacitance load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current @...
