SBL1635, SBL1630, 16A SCHOTTKY BARRIER RECTIFIER

NOT RECOMMENDED FOR NEW DESIGN SBL1630 - SBL1660 16A SCHOTTKY BARRIER RECTIFIER .

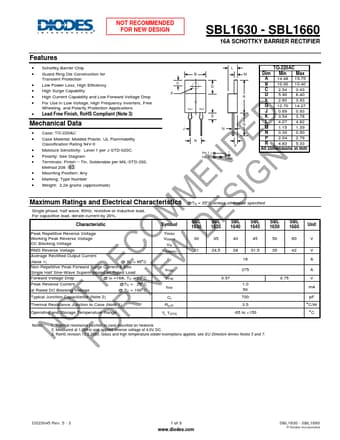

datasheet Preview Page 1 from Datasheet4u.com

SBL1630-Diodes.pdf

SBL1635 Datasheet Preview — This datasheet PDF includes multiple part numbers: SBL1635, SBL1630. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SBL1635, SBL1630

Manufacturer:

DIODES ↗

File Size:

83.91 KB

Description:

16A SCHOTTKY BARRIER RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: SBL1635, SBL1630.
Please refer to the document for exact specifications by model.

Features

* Schottky Barrier Chip
* Guard Ring Die Construction for Transient Protection
* Low Power Loss, High Efficiency
* High Surge Capability
* High Current Capability and Low Forward Voltage Drop
* For Use in Low Voltage, High Frequency Inverters, Free Whe

Applications

* Lead Free Finish, RoHS Compliant (Note 3) Mechanical Data
* Case: TO-220AC
* Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
* Moisture Sensitivity: Level 1 per J-STD-020C
* Polarity: See Diagram
* Terminals: Finish
