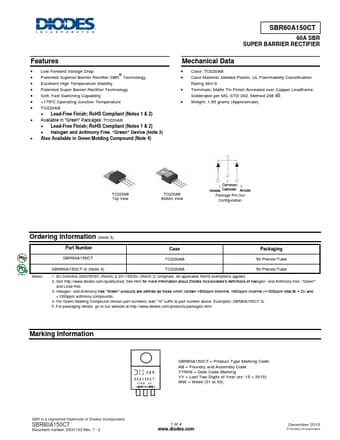

SBR60A150CT Datasheet | Diodes Incorporated

Features - Low Forward Voltage Drop - Patented Superior Barrier Rectifier SBR® Technology - Excellent High Temperature Stability - Patented Super Barrier Rectifier Technology - Soft, Fast Switching Capability - +175ºC Operating Junction Temperature - TO220AB - Lead-Free Finish; Ro HS pliant (Notes 1 & 2) - Available in “Green” Packages: TO220AB - Lead-Free Finish; Ro HS pliant (Notes 1 & 2) - Halogen and Antimony Free. “Green” Device (Note 3) - Also Available in Green Molding pound (Note 4) 60A SBR SUPER BARRIER RECTIFIER Mechanical Data - Case: TO220AB - Case Material: Molded Plastic, UL Flammability Classification Rating 94V-0 - Terminals: Matte Tin Finish Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 - Weight: 1.85 grams (Approximate) TO220AB Top View TO220AB Bottom View Package Pin Out Configuration Ordering Information (Note 5) Part Number SBR60A150CT Case TO220AB Packaging 50...
