SBRT20U100SLP

TRENCH SUPER BARRIER RECTIFIER

Diodes

SBRT20U100SLP Features

* Reduced Ultra-Low Forward Voltage Drop (VF)

* Better Efficiency and Cooler Operation

* Reduced High Temperature Reverse Leakage

* Increased Reliability Against Thermal Runaway Failure in High Temperature Operation

* Less than 1.1mm Package Profile

SBRT20U100SLP General Description

and Applications Packaged in the compact thermally efficient PowerDI® 5060-8 package, the SBRT20U100SLP provides very low VF and excellent reverse leakage stability at high temperatures. It is ideal for use as a rectifier, freewheel diode or blocking diode in:

* DC-DC converters

* AC.

SBRT20U100SLP Datasheet (263.33 KB)

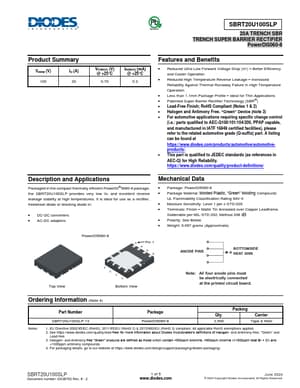

SBRT20U100SLP Datasheet Preview — Preview of SBRT20U100SLP PDF

Datasheet Details

Part number:

SBRT20U100SLP

Manufacturer:

DIODES ↗

File Size:

263.33 KB

Description:

Trench super barrier rectifier.
SBRT20U100SLP Green 20A TRENCH SBR TRENCH SUPER BARRIER RECTIFIER PowerDI5060-8 Product Summary VRRM (V) 100 IO (A) 20 VF(MAX) (V) @ +25°C 0.70 I.
