ZLPM8012 Datasheet - Diodes

ZLPM8012 SET-TOP BOX SERIES SINGLE LNB CONTROLLER AND POWER SUPPLY

A Product Line of Diodes Incorporated ZLPM8012 SET-TOP BOX SERIES SINGLE LNB CONTROLLER AND POWER SUPPLY IC Summary The ZLPM8012 is a power management and control solution for satellite set-top boxes (STBs). Based on an efficient boost converter the ZLPM8012 provides the power supply and all the control signals required by a single port satellite Low Noise Block (LNB). The ZLPM8012 includes an accurate 22kHz tone generator to provide DiSEqC™ control words or continuous tone for band switching.

ZLPM8012 Features

* Efficient boost converter providing an accurate adjustable power supplies LNBs

* Ope

ZLPM8012 Datasheet (49.77 KB)

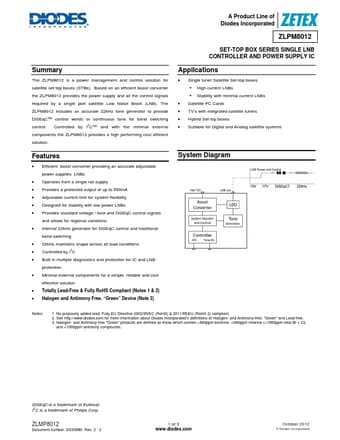

Preview of ZLPM8012 PDF
ZLPM8012 Datasheet Preview Page 2 ZLPM8012 Datasheet Preview Page 3

Datasheet Details

Part number:

ZLPM8012

Manufacturer:

DIODES ↗

File Size:

49.77 KB

Description:

Set-top box series single lnb controller and power supply.
