ZTL432, ZTL431 - COST EFFECTIVE ADJUSTABLE PRECISION SHUNT REGULATOR

Diodes

📥 Download Datasheet

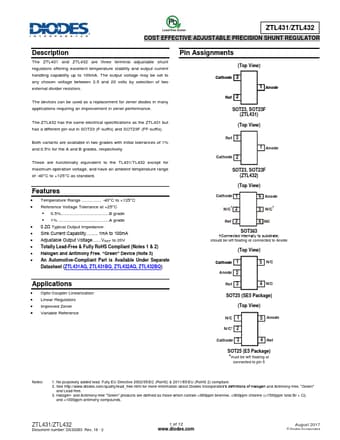

ZTL432 Datasheet Preview — This datasheet PDF includes multiple part numbers: ZTL432, ZTL431. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: ZTL432, ZTL431
Manufacturer: DIODES ↗
File Size: 439.62 KB
Datasheet: ZTL431-Diodes.pdf
Description: COST EFFECTIVE ADJUSTABLE PRECISION SHUNT REGULATOR
Note: This datasheet PDF includes multiple part numbers: ZTL432, ZTL431.
Please refer to the document for exact specifications by model.

ZTL432 Product details

Description

The ZTL431 and ZTL432 are three terminal adjustable shunt regulators offering excellent temperature stability and output current handling capability up to 100mA.

Features

Temperature Range -40°C to +125°C.
Reference Voltage Tolerance at +25°C.
0.5%B grade.
1% A grade.
0.2Ω Typical Output Impedance.
Sink Current Capability……. . 1mA to 100mA.
Adjustable Output Voltage……VREF to 20V.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
An Automotive-Compliant Part is Available Under Separate Datasheet (ZTL431AQ, ZTL431BQ, ZTL432AQ, ZTL432BQ).
