ZXMHC10A07T8

COMPLEMENTARY 100V ENHANCEMENT MODE MOSFET H-BRIDGE

ZXMHC10A07T8 Features

* low on-resistance achievable with low gate drive. Applications

* DC Motor Control

* DC-AC Inverters Features

* 2 x N + 2 x P Channels in a SOIC Package

* Low On-Resistance

* Low Input Capacitance

* Fast Switching Speed

* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

ZXMHC10A07T8 Datasheet (655.03 KB)

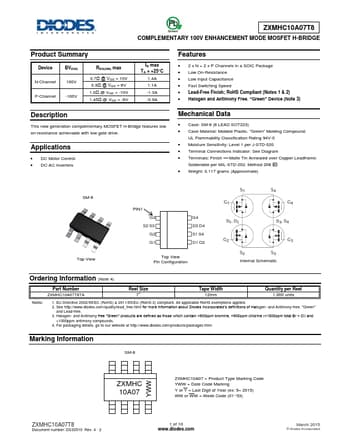

Preview of ZXMHC10A07T8 PDF

Datasheet Details

Part number:

ZXMHC10A07T8

Manufacturer:

DIODES ↗

File Size:

655.03 KB

Description:

Complementary 100v enhancement mode mosfet h-bridge.
ADVANCE INNEFWORPRMOADTIUOCNT ZXMHC10A07T8 Green COMPLEMENTARY 100V ENHANCEMENT MODE MOSFET H-BRIDGE Product Summary Device BVDSS N-Channel 100V .
