ZXTP05120HFF - PNP TRANSISTOR

Datasheet Summary

Description

This high performance PNP Darlington transistor is designed for applications requiring high gain and very low saturation voltage.

Features

  • BVCEO > -120V.
  • IC = -1A Continuous Collector Current.
  • Saturation Voltage VCE(SAT) < -1.1V @ -1A.
  • hFE Characterized Up to -6A.
  • High hFE (Min) = 3,000 @ -1A.
  • 1.5W Power Dissipation.
  • Complementary NPN Type: ZXTN04120HFF.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability.

📥 Download Datasheet

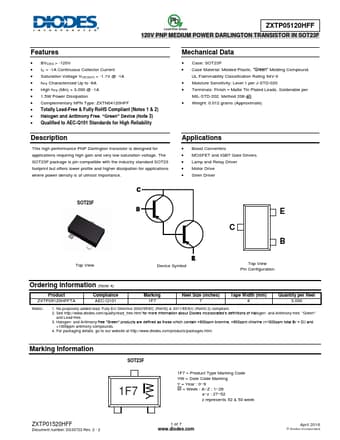

Datasheet preview – ZXTP05120HFF

Datasheet Details

Part number ZXTP05120HFF
Manufacturer DIODES
File Size 376.55 KB
Description PNP TRANSISTOR
Datasheet download datasheet ZXTP05120HFF Datasheet
Additional preview pages of the ZXTP05120HFF datasheet.

📁 Similar Datasheet

  • ZXTP19020CFF - PNP medium power transistor (Zetex Semiconductors)
  • ZXTP19060CFF - PNP medium power transistor (Zetex Semiconductors)
  • ZXTP19060CZ - 60V PNP medium transistor (Zetex Semiconductors)
  • ZXTP19060CZTA - 60V PNP medium transistor (Zetex Semiconductors)
  • ZXTP19100CFF - PNP medium power transistor (Zetex Semiconductors)
  • ZXTP19100CFFTA - PNP medium power transistor (Zetex Semiconductors)
  • ZXTP19100CG - 100V PNP medium transistor (Zetex Semiconductors)
  • ZXTP19100CGTA - 100V PNP medium transistor (Zetex Semiconductors)
  • ZXTP2006E6 - PNP LOW SAT MEDIUM POWER TRANSISTOR (Zetex Semiconductors)
  • ZXTP2008G - PNP LOW SATURATION TRANSISTOR (Zetex Semiconductors)
Other Datasheets by Diodes

Full PDF Text Transcription

Click to expand full text
ZXTP05120HFF 120V PNP MEDIUM POWER DARLINGTON TRANSISTOR IN SOT23F Features  BVCEO > -120V  IC = -1A Continuous Collector Current  Saturation Voltage VCE(SAT) < -1.1V @ -1A  hFE Characterized Up to -6A  High hFE (Min) = 3,000 @ -1A  1.5W Power Dissipation  Complementary NPN Type: ZXTN04120HFF  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  Qualified to AEC-Q101 Standards for High Reliability Description This high performance PNP Darlington transistor is designed for applications requiring high gain and very low saturation voltage. The SOT23F package is pin compatible with the industry standard SOT23 footprint but offers lower profile and higher dissipation for applications where power density is of utmost importance.
