DBI25-02 Datasheet - Diotec Semiconductor

DBI25-02 Three-Phase Si-Bridge Rectifiers

DBI 25-005 DBI 25-16 Three-Phase Si-Bridge Rectifiers Dreiphasen-Si-Brückengleichrichter Nominal current Nennstrom Repetitive peak reverse voltage Periodische Spitzensperrspannung Metal case Metallgehäuse Dimensions Abmessungen Weight approx. Gewicht ca. Compound has classification UL94V-0 Vergußmasse UL94V-0 klassifiziert Dimensions / Maße in mm 25 A 50…1600 V 40 x 20 x 10 [mm] 35 g Standard packaging: bulk see page 22 Standard Lieferform: lose im Karton s. Sei.

DBI25-02 Datasheet (164.96 KB)

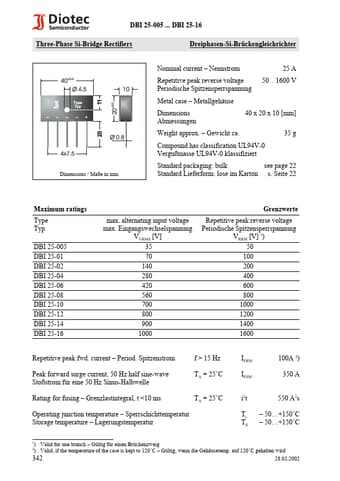

DBI25-02 Datasheet Preview — Preview of DBI25-02 PDF

Datasheet Details

Part number:

DBI25-02

Manufacturer:

Diotec Semiconductor

File Size:

164.96 KB

Description:

Three-phase si-bridge rectifiers.
