HV3 - High Voltage Si-Rectifiers

Diotec Semiconductor

Datasheet Details

Part number	HV3
Manufacturer	Diotec Semiconductor
File Size	22.71 KB
Description	High Voltage Si-Rectifiers
Datasheet	HV3 Datasheet

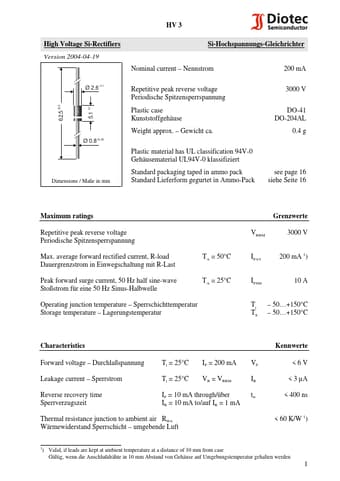

Additional preview pages of the HV3 datasheet.

📁 Similar Datasheet

HV3-2405E-5 - World-Wide Single Chip Power Supply (Harris Corporation)
HV3-2405E-9 - World-Wide Single Chip Power Supply (Harris Corporation)
HV30 - High Voltage 7-Segment Latch/Decoder/EL-Display Driver (Supertex)
HV300 - Inrush Current Limiter Controllers (Supertex Inc)
HV301 - Hotswap/ Controllers with Circuit Breaker (Supertex Inc)
HV302 - Sequencing Hotswap Controllers (Supertex Inc)
HV310 - Inrush Current Limiter Controllers (Supertex Inc)
HV311 - Hot Swap Controller (Supertex Inc)
HV312 - Sequencing Hotswap Controllers (Supertex Inc)
HV3137 - 64-Channel Serial To Parallel Converter With Open Drain Outputs (Supertex Inc)

Other Datasheets by Diotec Semiconductor

Full PDF Text Transcription

Click to expand full text

HV 3 High Voltage Si-Rectifiers Version 2004-04-19 Nominal current – Nennstrom Ø 2.6 -0.1 Si-Hochspannungs-Gleichrichter 200 mA 3000 V DO-41 DO-204AL 0.4 g Repetitive peak reverse voltage Periodische Spitzensperrspannung Plastic case Kunststoffgehäuse Weight approx. – Gewicht ca. 62.5 ±0.5 5.1 -0.1 Ø 0.8 ±0.05 Type Plastic material has UL classification 94V-0 Gehäusematerial UL94V-0 klassifiziert Dimensions / Maße in mm Standard packaging taped in ammo pack Standard Lieferform gegurtet in Ammo-Pack see page 16 siehe Seite 16 Maximum ratings Repetitive peak reverse voltage Periodische Spitzensperrspannung Max.
