P1000A - Standard Recovery Rectifier Diodes

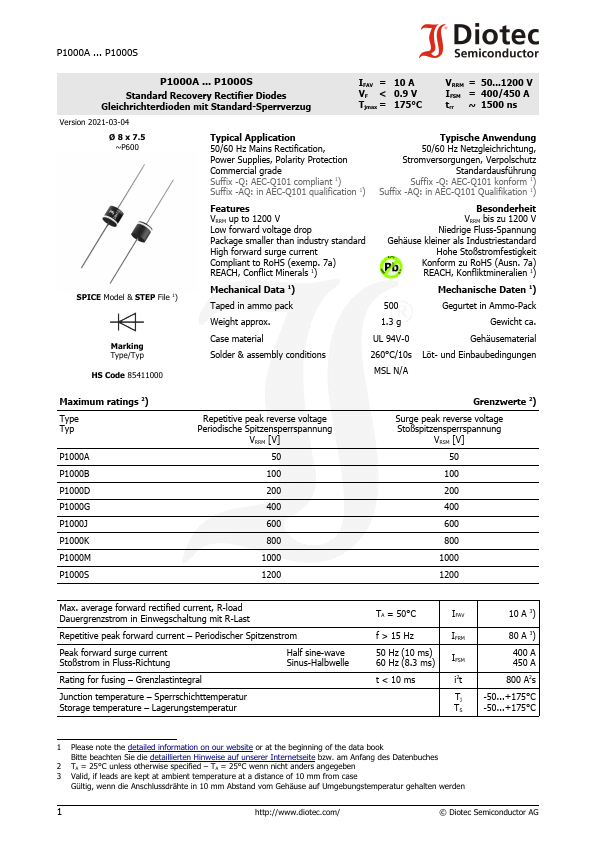

P1000A P1000S P1000A P1000S Standard Recovery Rectifier Diodes Gleichrichterdioden mit Standard-Sperrverzug IFAV = VF < Tjmax = 10 A 0.9 V 175°C VRRM = 501200 V IFSM = 400/450 A trr ~ 1500 ns Version 2021-03-04 Ø 8 x 7.5 ~P600 Typical Application 50/60 Hz Mains Rectification, Power Supplies, Polarity Protection Commercial grade Suffix -Q: AEC-Q101 compliant 1) Suffix -AQ: in AEC-Q101 qualification 1) Typische Anwendung 50/60 Hz Netzgleichrichtung, Stromversorgungen, Verpolschutz Standa

P1000A Features

* VRRM up to 1200 V Low forward voltage drop Package smaller than industry standard High forward surge current Compliant to RoHS (exemp. 7a) REACH, Conflict Minerals 1) WEEE Besonderheit VRRM bis zu 1200 V Niedrige Fluss-Spannung Gehäuse kleiner als Industriestandard Hohe Stoßstromfestigkeit Ro

P1000A-DiotecSemiconductor.pdf

P1000A Datasheet Preview — Preview of P1000A PDF

Datasheet Details

Part number:

P1000A

Manufacturer:

Diotec Semiconductor

File Size:

379.48 KB

Description:

Standard recovery rectifier diodes.

📁 Related Datasheet

P1000B P1000D P1000G P1000J P1000K P1000M

📌 All Tags

P1000A Standard Recovery Rectifier Diodes Diotec Semiconductor
