P1000D - Standard Recovery Rectifier Diodes

This page provides the datasheet information for the P1000D, a member of the P1000A Standard Recovery Rectifier Diodes family.

Features

  • VRRM up to 1200 V Low forward voltage drop Package smaller than industry standard High forward surge current Compliant to RoHS (exemp. 7a) REACH, Conflict Minerals 1) WEEE Besonderheit VRRM bis zu 1200 V Niedrige Fluss-Spannung Gehäuse kleiner als Industriestandard Hohe Stoßstromfestigkeit RoHS Pb ELV Konform zu RoHS (Ausn. 7a) REACH, Konfliktmineralien 1) SPICE Model & STEP File 1) Mechanical Data 1) Taped in ammo pack Mechanische Daten 1) 500 Gegurtet in Ammo-Pack Weight approx.

📥 Download Datasheet

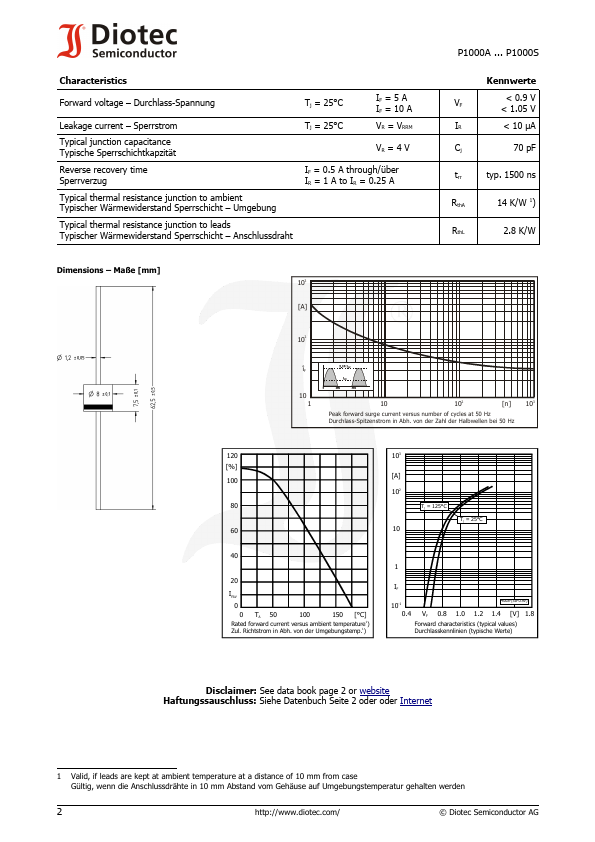

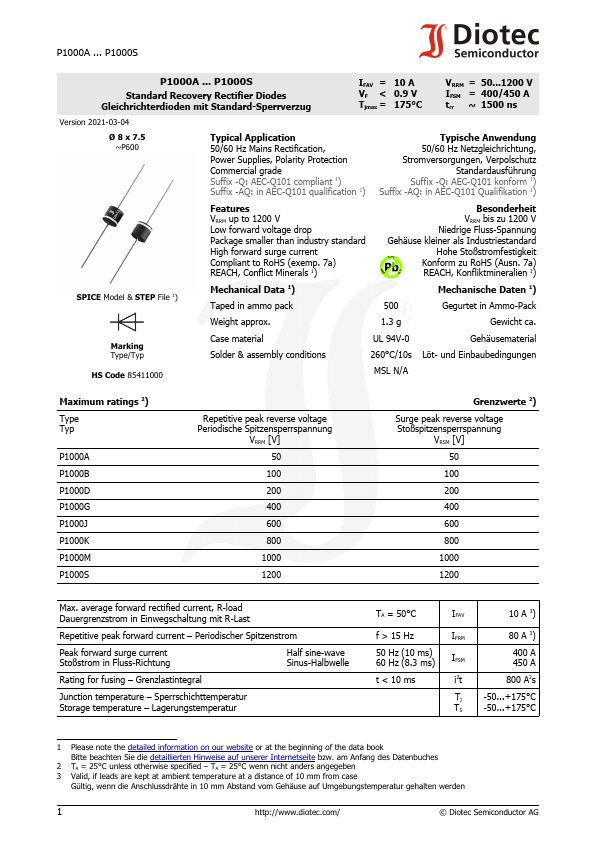

Datasheet preview – P1000D

Datasheet Details

Part number P1000D
Manufacturer Diotec Semiconductor
File Size 379.48 KB
Description Standard Recovery Rectifier Diodes
Datasheet download datasheet P1000D Datasheet

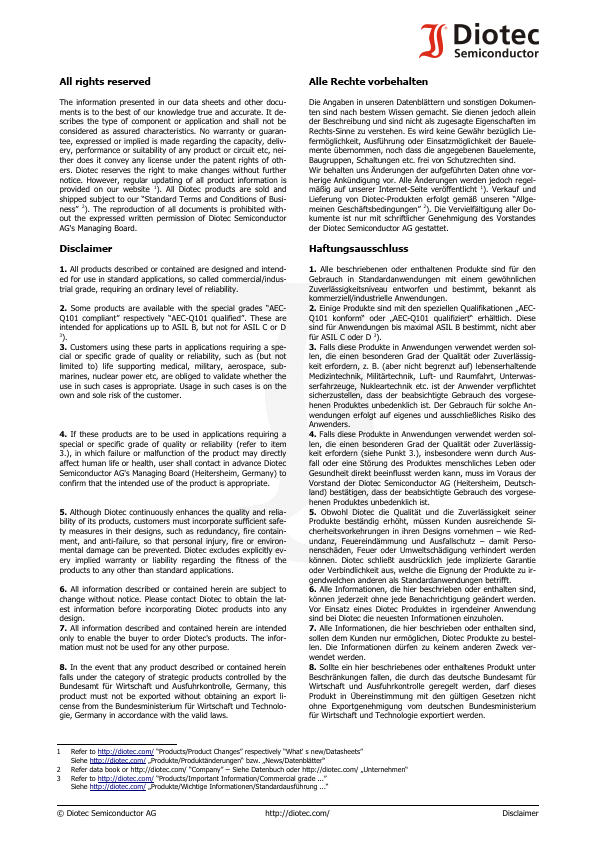

Additional preview pages of the P1000D datasheet.
