P1000G - Standard Recovery Rectifier Diodes

This page provides the datasheet information for the P1000G, a member of the P1000A Standard Recovery Rectifier Diodes family.

Features

  • VRRM up to 1200 V Low forward voltage drop Package smaller than industry standard High forward surge current Compliant to RoHS (exemp. 7a) REACH, Conflict Minerals 1) WEEE Besonderheit VRRM bis zu 1200 V Niedrige Fluss-Spannung Gehäuse kleiner als Industriestandard Hohe Stoßstromfestigkeit RoHS Pb ELV Konform zu RoHS (Ausn. 7a) REACH, Konfliktmineralien 1) SPICE Model & STEP File 1) Mechanical Data 1) Taped in ammo pack Mechanische Daten 1) 500 Gegurtet in Ammo-Pack Weight approx.

📥 Download Datasheet

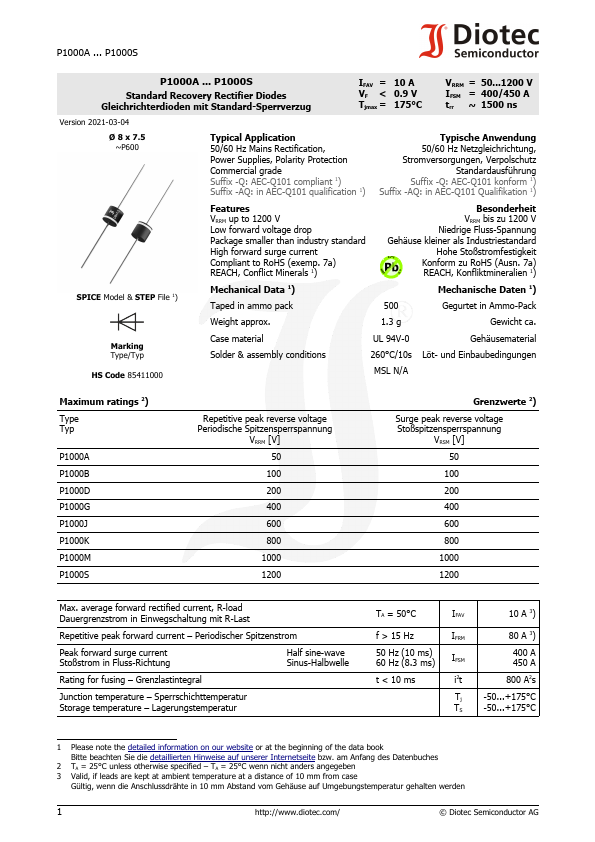

Datasheet preview – P1000G

Datasheet Details

Part number P1000G
Manufacturer Diotec Semiconductor
File Size 379.48 KB
Description Standard Recovery Rectifier Diodes
Datasheet download datasheet P1000G Datasheet

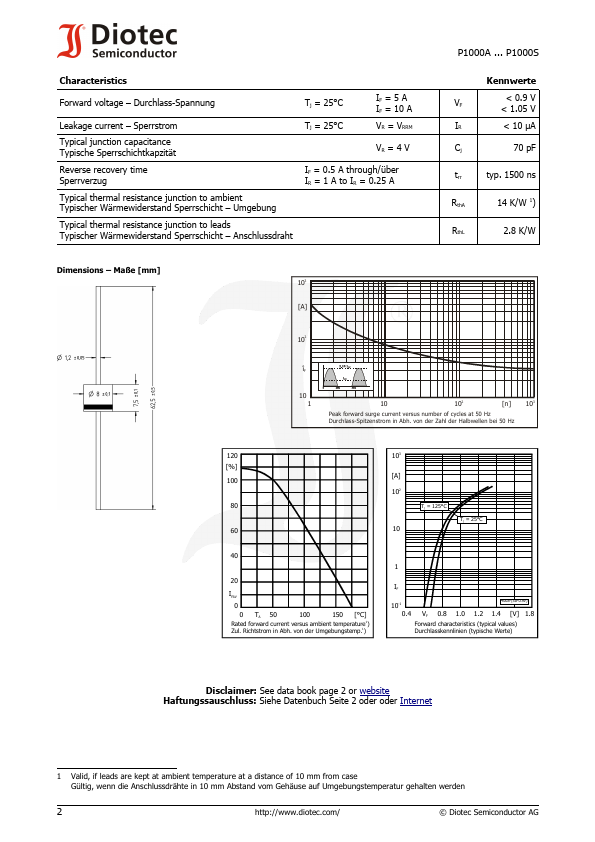

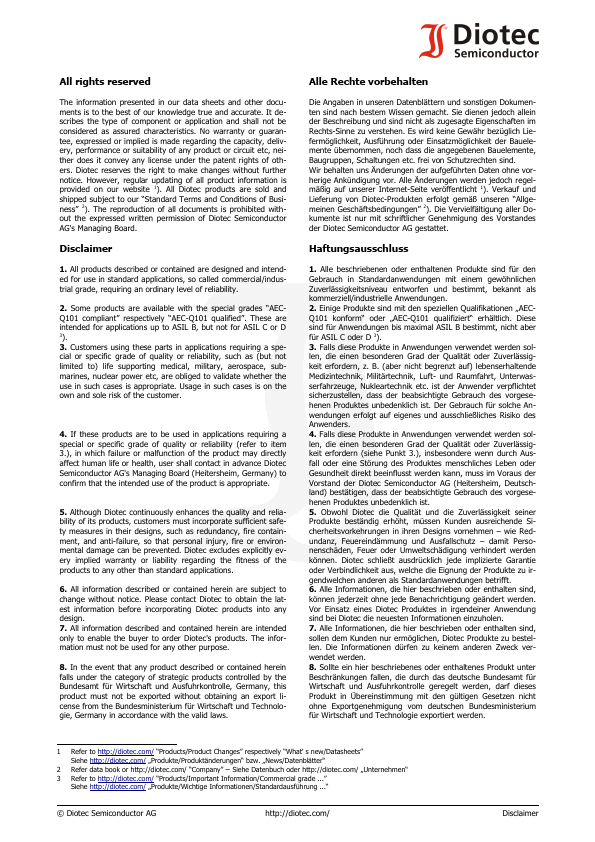

Additional preview pages of the P1000G datasheet.

📁 Similar Datasheet

  • P1000G - Standard silicon rectifier diode (Semikron International)
  • P1000A - Standard silicon rectifier diode (Semikron International)
  • P1000B - Standard silicon rectifier diode (Semikron International)
  • P1000D - Standard silicon rectifier diode (Semikron International)
  • P1000J - Standard silicon rectifier diode (Semikron International)
  • P1000K - Standard silicon rectifier diode (Semikron International)
  • P1000M - Standard silicon rectifier diode (Semikron International)
  • P1000S - Standard silicon rectifier diode (Semikron International)
  • P100 - PASSIVATED ASSEMBLED CIRCUIT ELEMENTS (International Rectifier)
  • P10015-ND - (P10xxx-ND) Snap-In Capacitors (Panasonic)
Other Datasheets by Diotec Semiconductor
  • P1000A - Standard Recovery Rectifier Diodes
  • P1000B - Standard Recovery Rectifier Diodes
  • P1000D - Standard Recovery Rectifier Diodes
  • P1000J - Standard Recovery Rectifier Diodes
  • P1000K - Standard Recovery Rectifier Diodes
  • P1000M - Standard Recovery Rectifier Diodes
  • P1000S - Standard Recovery Rectifier Diodes

Full PDF Text Transcription

Click to expand full text
P1000A ... P1000S P1000A ... P1000S Standard Recovery Rectifier Diodes Gleichrichterdioden mit Standard-Sperrverzug IFAV = VF < Tjmax = 10 A 0.9 V 175°C VRRM = 50...1200 V IFSM = 400/450 A trr ~ 1500 ns Version 2021-03-04 Ø 8 x 7.5 ~P600 Typical Application 50/60 Hz Mains Rectification, Power Supplies, Polarity Protection Commercial grade Suffix -Q: AEC-Q101 compliant 1) Suffix -AQ: in AEC-Q101 qualification 1) Typische Anwendung 50/60 Hz Netzgleichrichtung, Stromversorgungen, Verpolschutz Standardausführung Suffix -Q: AEC-Q101 konform 1) Suffix -AQ: in AEC-Q101 Qualifikation 1) Features VRRM up to 1200 V Low forward voltage drop Package smaller than industry standard High forward surge current Compliant to RoHS (exemp.
