Name: S3Y
SKU: S3Y-1204230

The S3Y by Diotec Semiconductor is a Standard Recovery SMD Rectifier Diodes. Below is the official datasheet preview.

Datasheet Details

Part number	S3Y
Manufacturer	Diotec Semiconductor
File Size	144.24 KB
Description	Standard Recovery SMD Rectifier Diodes
Datasheet	S3Y-DiotecSemiconductor.pdf

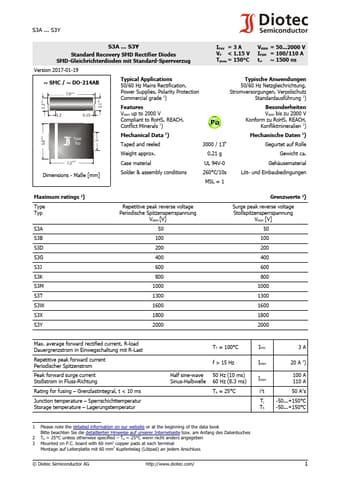

Additional preview pages of the S3Y datasheet.

S3Y Product details

Besonderheiten VRRM up to 2000 V VRRM bis zu 2000 V Compliant to RoHS, REACH, Conflict Minerals 1) WEEE RoHS Pb ELV Konform zu RoHS, REACH, Konfliktmineralien 1) 5.8±0.2 Type Mechanical Data 1) Mechanische Daten 1) 3 Typ Taped and reeled 3000 / 13“ Gegurtet auf Rolle Weight approx. 0.21 g Gewicht ca. 7.2±0.5 Case material UL 94V-0 Gehäusematerial Dimensions - Maße [mm] Solder & assembly conditions 260°C/10s MSL = 1 Löt- und Einbaubedingungen Maximum ratin.
