SA160 - Fast Switching Surface Mount Si-Rectifiers

📥 Download Datasheet

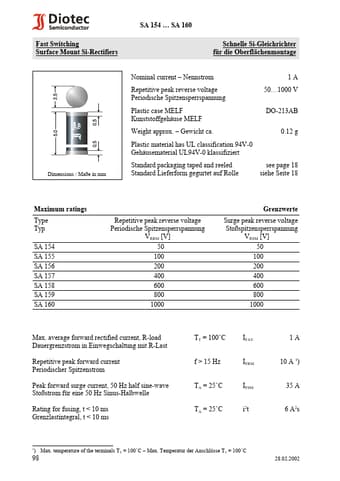

Datasheet preview – SA160

Datasheet Details

Part number SA160
Manufacturer Diotec Semiconductor
File Size 163.58 KB
Description Fast Switching Surface Mount Si-Rectifiers
Datasheet download datasheet SA160 Datasheet
Additional preview pages of the SA160 datasheet.

📁 Similar Datasheet

  • SA160 - AXIAL LEAD TRANSIENT VOLTAGE SUPPRESSORS (MIC)
  • SA160 - Transient Voltage Suppression (TVS) Diodes (Crydom)
  • SA160 - Transient Voltage Suppressors (Microsemi)
  • SA160 - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR (SEMITECH)
  • SA160 - Transient Voltage Suppressors (Crownpo)
  • SA160 - TRANSIENT VOLTAGE SUPPRESSOR (GME)
  • SA160 - TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR (General Semiconductor)
  • SA160 - 500 WATT PEAK POWER TRANSIENT VOLTAGE SUPPRESSORS (Bytes)
  • SA160 - TRANSIENT VOLTAGE SUPPRESSOR (EIC discrete)
  • SA160 - TRANSIENT VOLTAGE SUPPRESSOR (DC COMPONENTS)
Other Datasheets by Diotec Semiconductor
  • SA154 - Fast Switching Surface Mount Si-Rectifiers
  • SA155 - Fast Switching Surface Mount Si-Rectifiers
  • SA156 - Fast Switching Surface Mount Si-Rectifiers
  • SA157 - Fast Switching Surface Mount Si-Rectifiers
  • SA158 - Fast Switching Surface Mount Si-Rectifiers
  • SA159 - Fast Switching Surface Mount Si-Rectifiers

Full PDF Text Transcription

Click to expand full text
SA 154 … SA 160 Fast Switching Surface Mount Si-Rectifiers Schnelle Si-Gleichrichter für die Oberflächenmontage Nominal current – Nennstrom Repetitive peak reverse voltage Periodische Spitzensperrspannung Plastic case MELF Kunststoffgehäuse MELF Weight approx. – Gewicht ca. Plastic material has UL classification 94V-0 Gehäusematerial UL94V-0 klassifiziert Dimensions / Maße in mm 1A 50…1000 V DO-213AB 0.12 g Standard packaging taped and reeled Standard Lieferform gegurtet auf Rolle see page 18 siehe Seite 18 Maximum ratings Type Typ SA 154 SA 155 SA 156 SA 157 SA 158 SA 159 SA 160 Repetitive peak reverse voltage Periodische Spitzensperrspannung VRRM [V] 50 100 200 400 600 800 1000 Grenzwerte Surge peak reverse voltage Stoßspitzensperrspannung VRSM [V] 50 100 200 400 600 800 1000 Max.
