SK315 - SMD Schottky Barrier Rectifier Diodes

Product Overview

Diotec Semiconductor

Part number	SK315
Manufacturer	Diotec Semiconductor
File Size	137.57 KB
Description	SMD Schottky Barrier Rectifier Diodes
Datasheet	SK315 Datasheet

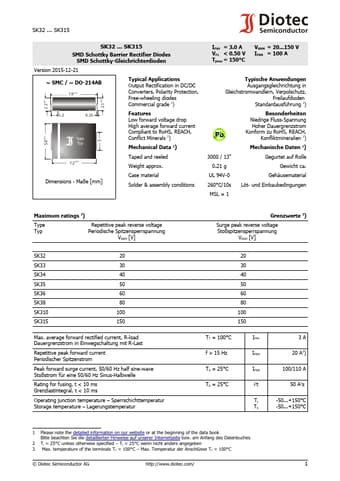

Additional preview pages of the SK315 datasheet.

Low forward voltage drop High average forward current Compliant to RoHS, REACH, Conflict Minerals 1) Mechanical Data 1) 5.8±0.2 Taped and reeled 7.2±0.5 Weight approx. Dimensions - Maße [mm] Case material Solder & assembly conditions IFAV = 3.0 A VF1 < 0.50 V Tjmax = 150°C VRRM = 20150 V IFSM = 100 A Typische Anwendungen Ausgangsgleichrichtung in Gleichstromwandlern, Verpolschutz, Freilaufdioden Standardausführung 1) Besonderheiten Niedrige Fluss-Spannung Hoher Dauergrenzstrom RoHS.
