1.5SMC300 Datasheet - Diotec

1.5SMC300 SMD Transient Voltage Suppresssor Diodes

1.5SMC220 1.5SMC550CA 1.5SMC220 1.5SMC550CA SMD Transient Voltage Suppresssor Diodes SMD Spannungs-Begrenzer-Dioden PPPM = 1500 W PM(AV) = 5.0 W Tjmax = 150°C VWM = 175 495 V VBR = 220 550 V Version 2016-05-31 ~ SMC / ~ DO-214AB 7.9±0.2 Typical Applications Over-voltage protection ESD protection Free-wheeling diodes Commercial grade 1) Typische Anwendungen Schutz gegen Überspannung ESD-Schutz Freilauf-Dioden Standardausführung 1) 2.1±0.2 2.2±0.3 5.8±0.2 1.2 0.15 Type Typ 7.2±0.5 D.

1.5SMC300 Features

* Besonderheiten Uni- and Bidirectional versions Uni- und Bidirektionale Versionen Peak pulse power of 200 W 200 W Impuls-Verlustleistung (10/1000 µs waveform) (10/1000 µs Strom-Impuls) Very fast response time Sehr schnelle Ansprechzeit Further available: 1.5SMCJ5.0170CA Auch erhältlich: 1.5

1.5SMC300 Datasheet (140.29 KB)

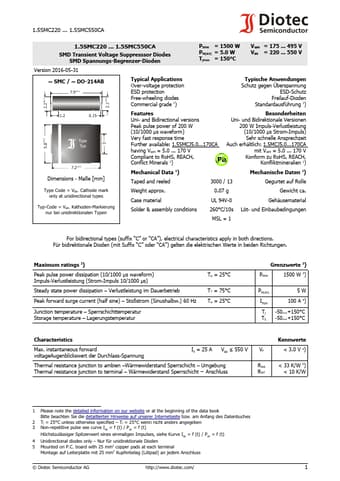

Preview of 1.5SMC300 PDF
1.5SMC300 Datasheet Preview Page 2 1.5SMC300 Datasheet Preview Page 3

Datasheet Details

Part number:

1.5SMC300

Manufacturer:

Diotec

File Size:

140.29 KB

Description:

Smd transient voltage suppresssor diodes.
