5KP110 Transient Voltage Suppressor Diodes

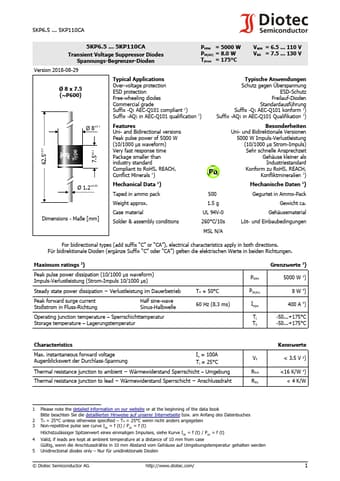

5KP6.5 5KP110CA 5KP6.5 5KP110CA Transient Voltage Suppressor Diodes Spannungs-Begrenzer-Dioden PPPM = 5000 W PM(AV) = 8.0 W Tjmax = 175°C VWM = 6.5 110 V VBR = 7.5 130 V Version 2018-08-29 Ø 8 x 7.5 (~P600) Typical Applications Over-voltage protection ESD protection Free-wheeling diodes Commercial grade Suffix -Q: AEC-Q101 compliant 1) Suffix -AQ: in AEC-Q101 qualification 1) Typische Anwendungen Schutz gegen Überspannung ESD-Schutz Freilauf-Dioden Standardausführung Suffix -Q: AEC-Q1.

5KP110 Features

* Uni- and Bidirectional versions Peak pulse power of 5000 W (10/1000 µs waveform) Very fast response time Package smaller than industry standard Compliant to RoHS, REACH, Conflict Minerals 1) WEEE Besonderheiten Uni- und Bidirektionale Versionen 5000 W Impuls-Verlustleistung (10/1000 µs Strom-Im
