BZW06-145, BZW06-5V8, Transient Voltage Suppressor Diodes

BZW06-5V8 BZW06-376B BZW06-5V8 BZW06-376B Transient Voltage Suppressor Diodes Spannungs-Begrenzer-Dioden PPPM = 600W PM(AV) = 5.0 W Tjmax = 175°C .

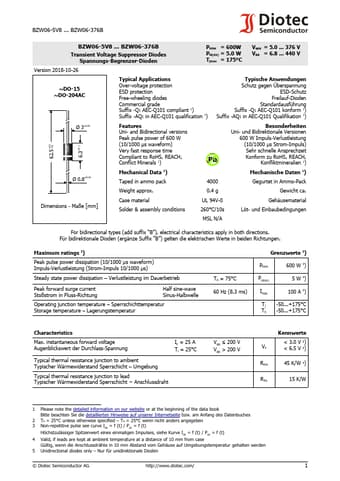

datasheet Preview Page 1 from Datasheet4u.com

BZW06-5V8-Diotec.pdf

BZW06-145 Datasheet Preview — This datasheet PDF includes multiple part numbers: BZW06-145, BZW06-5V8. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BZW06-145, BZW06-5V8

Manufacturer:

Diotec

File Size:

146.69 KB

Description:

Transient Voltage Suppressor Diodes

Note:

This datasheet PDF includes multiple part numbers: BZW06-145, BZW06-5V8.
Please refer to the document for exact specifications by model.

Features

* Uni- and Bidirectional versions Peak pulse power of 600 W (10/1000 µs waveform) Very fast response time Compliant to RoHS, REACH, Conflict Minerals 1) WEEE Besonderheiten Uni- und Bidirektionale Versionen 600 W Impuls-Verlustleistung (10/1000 µs Strom-Impuls) Sehr schnelle Ansprechzeit RoHS P

Applications

* Over-voltage protection ESD protection Free-wheeling diodes Commercial grade Suffix -Q: AEC-Q101 compliant 1) Suffix -AQ: in AEC-Q101 qualification 1) Typische Anwendungen Schutz gegen Überspannung ESD-Schutz Freilauf-Dioden Standardausführung Suffix -Q: AEC-Q101 konform 1) Suffix -AQ: in AEC-Q101
