KBPC1001FP Single Phase Bridge Rectifier

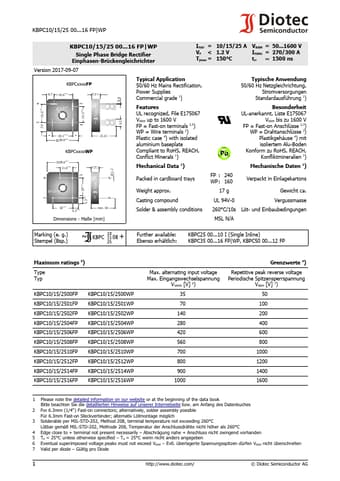

KBPC10/15/25 0016 FP|WP KBPC10/15/25 0016 FP|WP Single Phase Bridge Rectifier Einphasen-Brückengleichrichter IFAV = VF < Tjmax = 10/15/25 A 1.2 V 150°C VRRM = 501600 V IFSM1 = 270/300 A trr ~ 1500 ns Version 2017-09-07 KBPCxxxxFP 6.7 16.6±0.5 + Ø 5.2±0.2 7.3+0.7 0.1 ~+ 16.6±0.5 ~ 7.9 = 18.1±0.5 = 28.6±0.5 21.6+ 21 KBPCxxxxWP 28.6±0.5 11.6±0.5 7.3+0.7 - 0.1 + ~+ 14.3±0.5 ~ Type 6.3 0.8 Ø 1.2 Typical Application 50/60 Hz Mains Rectification, Power Supplies Com.

KBPC1001FP Features

* UL recognized, File E175067 VRRM up to 1600 V FP = Fast-on terminals 2,3) WP = Wire terminals 3) Plastic case 4) with isolated aluminium baseplate Compliant to RoHS, REACH, Conflict Minerals 1) Mechanical Data 1) Packed in cardboard trays WEEE RoHS Pb FP : 240 WP : 160 ELV Typische Anwendung 50/
