MM3Z12, MM3Z2V4, SMD Planar Zener Diodes

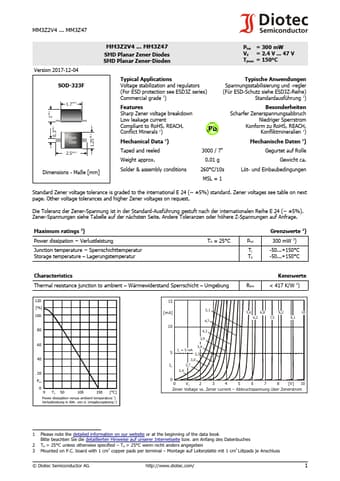

MM3Z2V4 MM3Z47 MM3Z2V4 MM3Z47 SMD Planar Zener Diodes SMD Planar Zener-Dioden Ptot = 300 mW VZ = 2.4 V 47 V Tjmax = 150°C Version 2017-12-04 SO.

MM3Z2V4-Diotec.pdf

MM3Z12 Datasheet Preview — This datasheet PDF includes multiple part numbers: MM3Z12, MM3Z2V4. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MM3Z12, MM3Z2V4

Manufacturer:

Diotec

File Size:

144.29 KB

Description:

SMD Planar Zener Diodes

Note:

This datasheet PDF includes multiple part numbers: MM3Z12, MM3Z2V4.
Please refer to the document for exact specifications by model.

Features

* Sharp Zener voltage breakdown Low leakage current Compliant to RoHS, REACH, Conflict Minerals 1) WEEE RoHS Pb Mechanical Data 1) ELV Typische Anwendungen Spannungsstabilisierung und -regler (Für ESD-Schutz siehe ESD3Z-Reihe) Standardausführung 1) Besonderheiten Scharfer Zenerspannungsabbruch Ni
