MMFTP84 - P-Channel Enhancement Mode FET

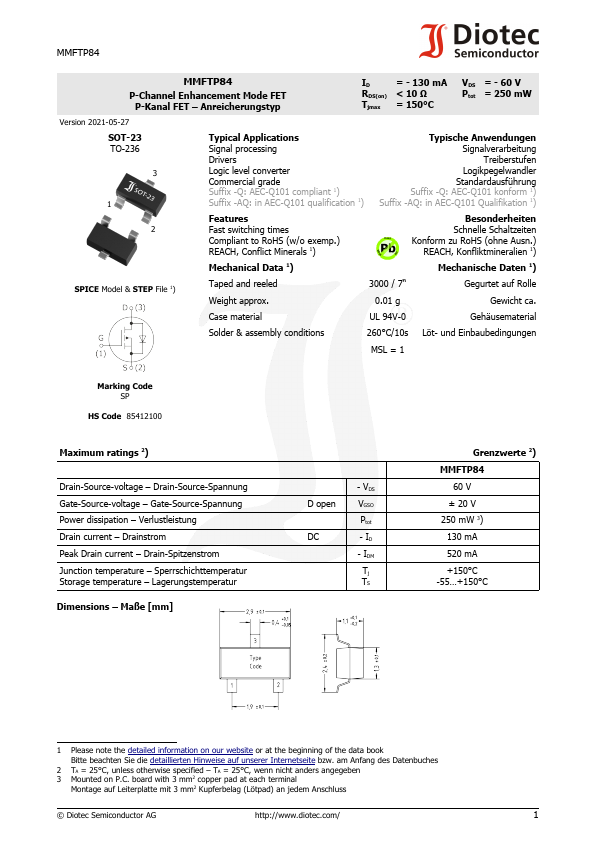

MMFTP84 MMFTP84 P-Channel Enhancement Mode FET P-Kanal FET Anreicherungstyp ID RDS(on) Tjmax = - 130 mA < 10 Ω = 150°C VDS = - 60 V Ptot = 250 mW Version 2021-05-27 SOT-23 TO-236 3 1 Typical Applications Signal processing Drivers Logic level converter Commercial grade Suffix -Q: AEC-Q101 compliant 1) Suffix -AQ: in AEC-Q101 qualification 1) Typische Anwendungen Signalverarbeitung Treiberstufen Logikpegelwandler Standardausführung Suffix -Q: AEC-Q101 konform 1) Suffix -AQ: in AE

MMFTP84 Features

* Besonderheiten 2 Fast switching times Schnelle Schaltzeiten Compliant to RoHS (w/o exemp.) REACH, Conflict Minerals 1) WEEE RoHS Pb ELV Konform zu RoHS (ohne Ausn.) REACH, Konfliktmineralien 1) Mechanical Data 1) Mechanische Daten 1) SPICE Model & STEP File 1) Taped and reeled Weight ap

MMFTP84-Diotec.pdf

MMFTP84 Datasheet Preview — Preview of MMFTP84 PDF

Datasheet Details

Part number:

MMFTP84

Manufacturer:

Diotec

File Size:

705.86 KB

Description:

P-channel enhancement mode fet.
