P4SMA550, P4SMA220 Datasheet - Diotec

P4SMA550 SMD Transient Voltage Suppressor Diodes

P4SMA220 P4SMA550CA P4SMA220 P4SMA550CA SMD Transient Voltage Suppressor Diodes SMD Spannungs-Begrenzer-Dioden PPPM = 400W PM(AV) = 1.0 W Tjmax = 150°C VWM = 175 495 V VBR = 220 550 V Version 2016-05-31 ~ SMA / ~ DO-214AC 5± 0.2 Typical Applications Over-voltage protection ESD protection Free-wheeling diodes Commercial grade 1) Typische Anwendungen Schutz gegen Überspannung ESD-Schutz Freilauf-Dioden Standardausführung 1) 2.1± 0.2 2.2± 0.2 1± 0.3 Type Typ 0.15 1.5±0.1 4.5± 0.3 .

P4SMA550 Features

* Besonderheiten Uni- and Bidirectional versions Uni- und Bidirektionale Versionen Peak pulse power of 400 W 400 W Impuls-Verlustleistung (10/1000 µs waveform) (10/1000 µs Strom-Impuls) Very fast response time Sehr schnelle Ansprechzeit Further available: P4SMAJ5.0170CA Auch erhältlich: P4SM

P4SMA220-Diotec.pdf

This datasheet PDF includes multiple part numbers: P4SMA550, P4SMA220. Please refer to the document for exact specifications by model.

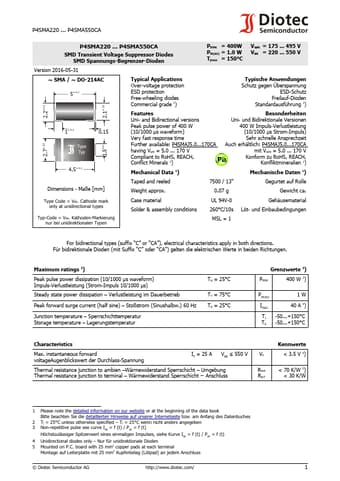

P4SMA550 Datasheet Preview Page 2 P4SMA550 Datasheet Preview Page 3

Datasheet Details

Part number:

P4SMA550, P4SMA220

Manufacturer:

Diotec

File Size:

152.10 KB

Description:

Smd transient voltage suppressor diodes.

Note:

This datasheet PDF includes multiple part numbers: P4SMA550, P4SMA220.
Please refer to the document for exact specifications by model.
