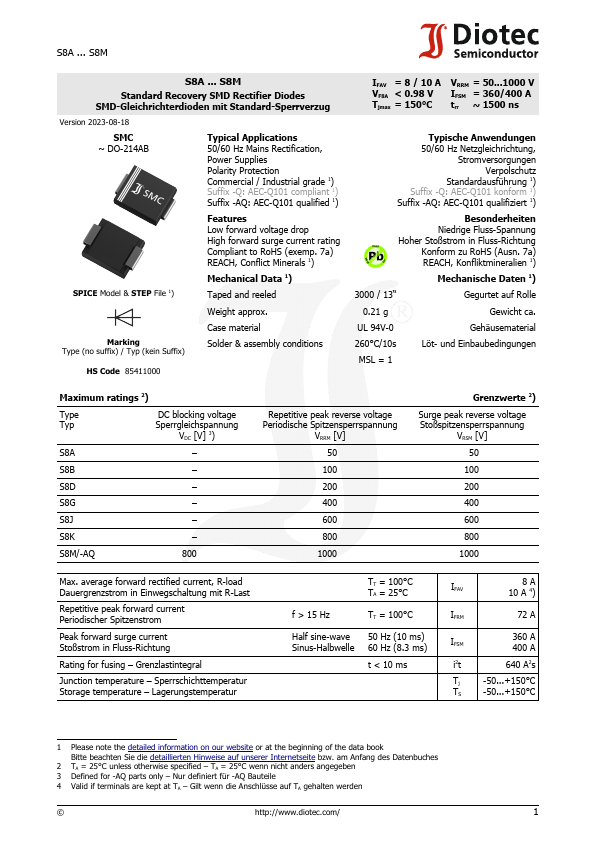

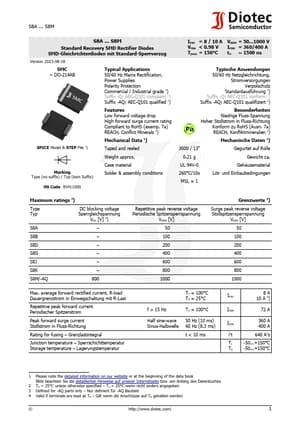

S8D - Standard Recovery SMD Rectifier Diodes

Diotec

Datasheet Details

Part number	S8D
Manufacturer	Diotec
File Size	536.17 KB
Description	Standard Recovery SMD Rectifier Diodes
Datasheet	S8D-Doitec.pdf

Low forward voltage drop High forward surge current rating Compliant to RoHS (exemp. 7a) REACH, Conflict Minerals 1) Mechanical Data 1) SPICE Model & STEP File 1) Taped and reeled Weight approx. Case material Marking Type (no suffix) / Typ (kein Suffix) Solder & assembly conditions HS Code 85411000 IFAV = 8 / 10 A VF8A < 0.98 V Tjmax = 150°C VRRM = 501000 V IFSM = 360/400 A trr ~ 1500 ns Typische Anwendungen 50/60 Hz Netzgleichrichtung, Stromversorgungen Verpolschutz Standardausführun.
