SK310SMB-Q, SK34SMB-Q - SMD Schottky Barrier Rectifier Diodes

SK310SMB-Q Description

SK34SMB-Q, SK310SMB-Q SK34SMB-Q, SK310SMB-Q SMD Schottky Barrier Rectifier Diodes SMD Schottky-Gleichrichterdioden Version 2018-01-19 ~ SMB / ~ DO-.

SK310SMB-Q Features

* Low forward voltage drop High average forward current Compliant to RoHS, REACH, Conflict Minerals 1) Mechanical Data 1) 3.7± 0.3 Taped and reeled 4.6± 0.5 Weight approx. Case material Dimensions - Maße [mm] Solder & assembly conditions IFAV = 3 A VF1 < 0.55 V Tjmax = 150°C VRRM = 40, 100 V

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SK310SMB-Q, SK34SMB-Q. Please refer to the document for exact specifications by model.

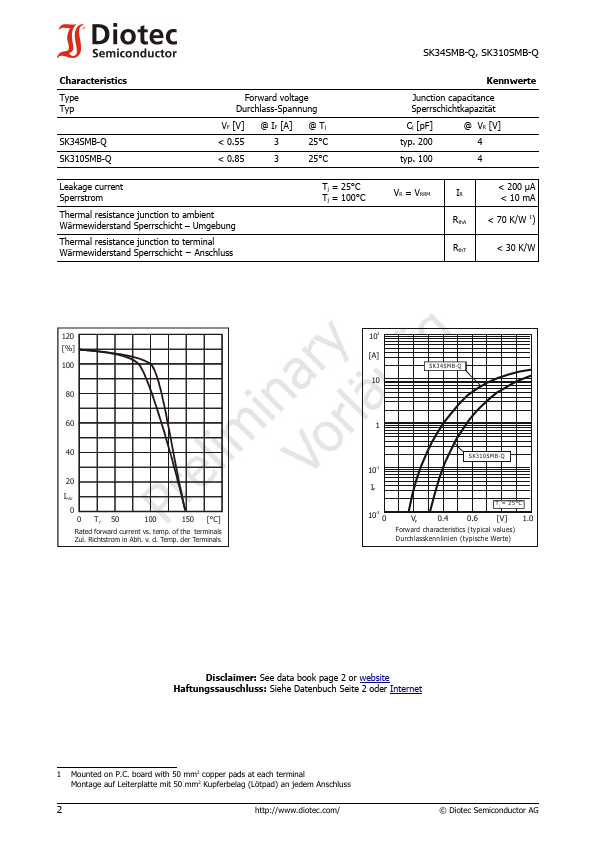

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SK310SMB-Q, SK34SMB-Q
Manufacturer
Diotec
File Size
267.28 KB
Datasheet
SK34SMB-Q-Diotec.pdf
Description
SMD Schottky Barrier Rectifier Diodes
Note
This datasheet PDF includes multiple part numbers: SK310SMB-Q, SK34SMB-Q.
Please refer to the document for exact specifications by model.
