ZMD13, ZMD1, SMD Zener Diodes

ZMD1 ZMD100 ZMD1 ZMD100 SMD Zener Diodes (non-planar technology) Flächendiffundierte SMD Zener-Dioden Ptot = 1 W VZ = 1 V 100 V Tjmax = 175°C Ve.

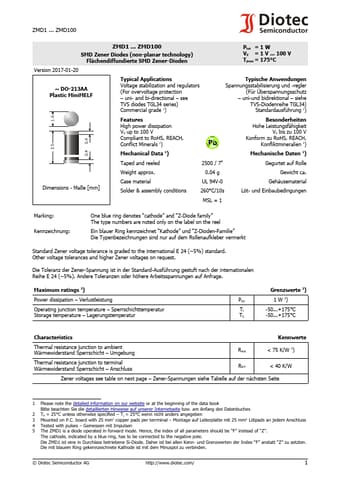

datasheet Preview Page 1 from Datasheet4u.com

ZMD1-Diotec.pdf

ZMD13 Datasheet Preview — This datasheet PDF includes multiple part numbers: ZMD13, ZMD1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ZMD13, ZMD1

Manufacturer:

Diotec

File Size:

121.83 KB

Description:

SMD Zener Diodes

Note:

This datasheet PDF includes multiple part numbers: ZMD13, ZMD1.
Please refer to the document for exact specifications by model.

Features

* High power dissipation VZ up to 100 V Compliant to RoHS, REACH, Conflict Minerals 1) WEEE RoHS Pb Besonderheiten Hohe Leistungsfähigkeit VZ bis zu 100 V Konform zu RoHS, REACH, Konfliktmineralien 1) Mechanical Data 1) Mechanische Daten 1) Taped and reeled 2500 / 7“ Gegurtet auf Rolle Weight

Applications

* Voltage stabilization and regulators (For overvoltage protection
* uni- and bi-directional
* see TVS diodes TGL34 series) Commercial grade 1) Typische Anwendungen Spannungsstabilisierung und -regler (Für Überspannungsschutz
* uni-und bidirektional
* siehe TVS-Diodenr
