ZMY33 Datasheet - Diotec

ZMY33 SMD Zener Diodes

ZMY1, ZMY3.0G ZMY9.1G, ZMY10 ZMY200 ZMY1, ZMY3.0G ZMY9.1G, ZMY10 ZMY200 SMD Zener Diodes SMD Zener-Dioden Ptot = 1 W, 1.3W VZ = 1 V 200 V Tjmax = 150°C, 175°C Version 2016-07-04 ZMYG ~ DO-213AB Glass MELF (planar) ZMY ~ DO-213AB Plastic MELF (non-planar) Typical Applications Voltage stabilization/regulators (For overvoltage protection uni- and bi-directional see TVS diodes TGL41 series) Commercial grade 1) Typische Anwendungen Spannungsstabilisierung/-regler (Für .

ZMY33 Features

* Besonderheiten ZMYG: Low leakage current ZMYG: Niedriger Sperrstrom Sharp Zener voltage breakdown Scharfer Zenerabbruch ZMY: High power dissipation ZMY: Hohe Leistungsfähigkeit VZ up to 200 V Compliant to RoHS, REACH, Conflict Minerals 1) WEEE VZ bis zu 200 V RoHS Pb ELV Konform zu RoHS

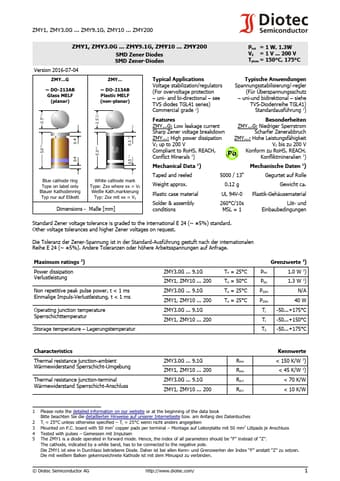

ZMY33 Datasheet (207.45 KB)
