MBRF20100CT, MBRF2080CT SCHOTTKY BARRIER RECTIFIER

MBRF20100CT Description

MBRF2020CT THRU MBRF20100CT SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 100 Volts Forward Current - 20.0 Ampere .

MBRF20100CT Features

* Plastic package has Underwriters Laboratory Flammability
* ITO-220AB .138(3.5) .122(3.1) .118(3.0) .102(2.6) .189(4.8) .173(4.4) .118(3.0) .106(2.7) Classification 94V-0 Dual rectifier construction, positive center tap Metal silicon junction, majority carrier cond

MBRF20100CT Applications

* .157(4.0) .142(3.6) .406(10.3) .386(9.8) .610(15.5) .571(14.5) MECHANICAL DATA
* Case: JEDEC ITO-220AB molded plastic body
* Terminals: Plated leads, solderable per MIL-STD-750, Method 2026
* High temperature soldering guaranteed: 250 oC/10 seconds, 0.25" (6.35mm) from case
* Pol

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBRF20100CT, MBRF2080CT. Please refer to the document for exact specifications by model.

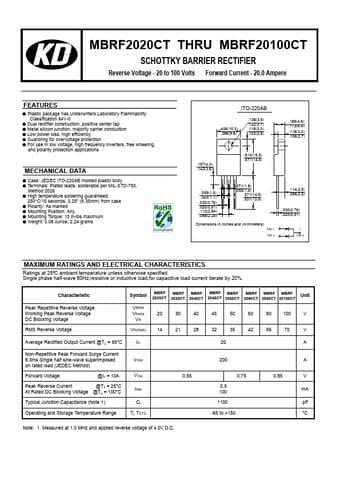

datasheet Preview Page 2

Datasheet Details

Part number
MBRF20100CT, MBRF2080CT
Manufacturer
Diotech
File Size
1.03 MB
Datasheet
MBRF2080CT_Diotech.pdf
Description
SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: MBRF20100CT, MBRF2080CT.
Please refer to the document for exact specifications by model.
