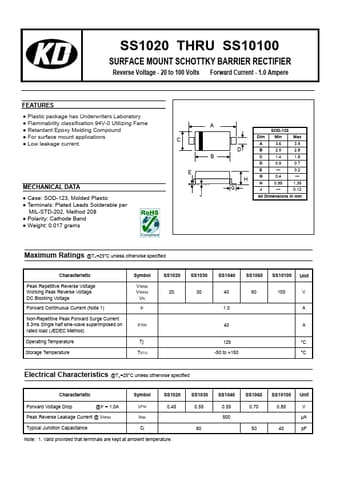

SS10100, SS1020 (SS1020 - SS10100) SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

SS10100 Description

SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 100 Volts Forward Current - 1.0 Ampere SS1020 THRU SS10100 .

SS10100 Features

* Plastic package has Underwriters Laboratory
* Flammability classification 94V-0 Utilizing Fame
* Retardant Epoxy Molding Compound

SS10100 Applications

* Low leakage current. A C D B E Dim A B C D E SOD-123 Min 3.6 2.5 1.4 0.5
* 0.4 0.95
* Max 3.9 2.8 1.8 0.7 0.2
* 1.35 0.12 MECHANICAL DATA
* Case: SOD-123, Molded Plastic
* Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
* Polarity: Cathode B
